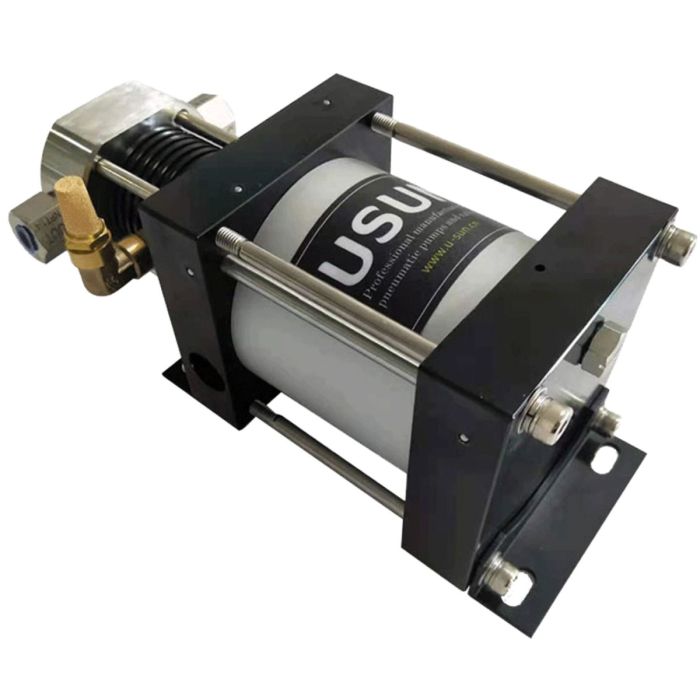

USUN XB30-OL Booster Pump

USUN GAS BOOSTERS

USUN produces high-quality gas boosters that can be used with oxygen, helium, air, argon, or any other gas that you need!

If you are looking for a smaller, portable unit to fill CCR cylinders or the occasional AL40. This is the right booster for you!

Key features
1. Reliable, Easy to maintain, compact, and robust
2. No heat, flame, or spark risk
3. Infinitely variable cycling speed and output
4. Air-driven Models do not require an electrical connection, easy to apply with automatic controls
5. No limit or adverse effect to continuous stop/start applications
6. Seals system designed for long working life, no airline lubrication required
7. Built-in coupling system (Most models) and suitable for most gases boosting

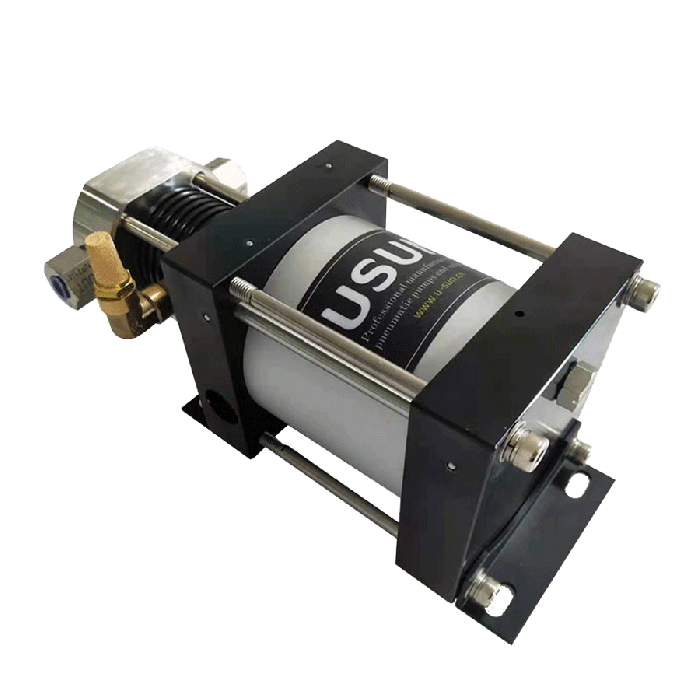

XB30-OL
- Single Action booster
- 31cm x 12cm x 13cm
- Oxygen cleaned
- 30:1 pressure ratio
- Minimum inlet pressure 30 bar
- Maximum outlet pressure 240 bar
- Outlet pressure formula 40PA+2PI
- Inlet port size 1/4"NPT
- Outlet port size 1/4" NPT
- Air Drive port 3/8" PT
- Maximum drive gas pressure 8 bar
- Travel Friendly

Drive Gas:

• The user can use compressed gas from scuba cylinders or a compressor. The manufacturer recommends 24 cfm to run the booster 60-70 cycles per minute. This is well above the speed we run our booster for safety. We have clients that have success using this booster with 6-8cfm and slower fill rates. It is recommended to use a dryer and filter before plumbing your shop compressor into the booster.
• We have found that using (1) AL80 to drive the booster will boost about 50cu/ft of gas. **Your results may vary depending on starting and ending pressure**
