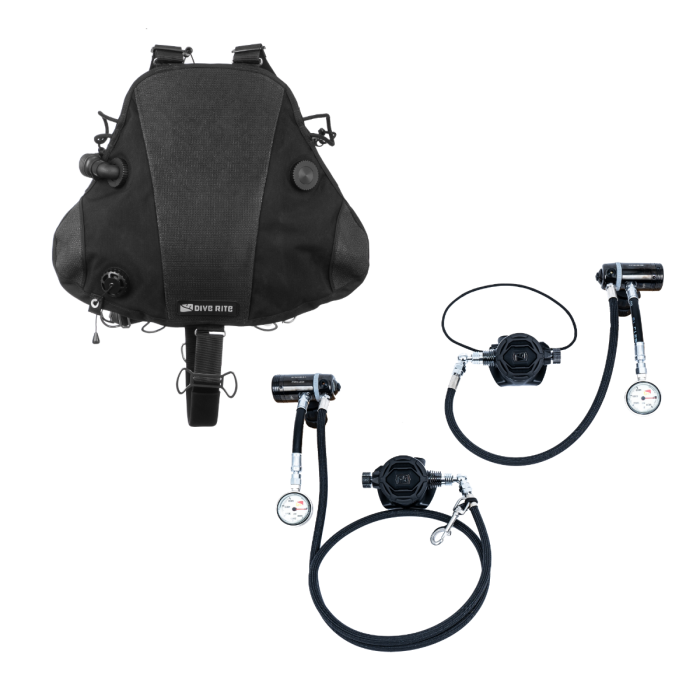

Dive Rite Sidemount Package

This Dive Rite Sidemount Package provides nearly everything you need to start sidemount diving. It combines the comfort and customization of the Nomad Ray sidemount system with the performance and streamlined design of the XT4 regulator package.

Choose Your Gear:

• Nomad Ray Sidemount System: Available in a variety of colors (Pink, Red, Blue, Black, and Green), the Nomad Ray offers a comfortable, customizable fit and features designed for both recreational and technical sidemount diving.

Regulator Options:

• XT2 Sidemount Regs (1 Right / 1 Left-handed regulator)
• XT2 Sidemount Regs (2 Right-Handed Regulators)
• XT4 Sidemount Package (1 Right-Handed / 1 Left-Handed Regulator)
• XT4 Sidemount Package (2 Right-Handed Regulators)

Optional Add-On:

• Sidemount Rigging Kit for Large Cylinders

Key Features of the Nomad Ray:

• Superfabric® Abrasion Resistance: A full-length Superfabric® "skid plate" provides optimal wear protection in high-wear areas.
• Easy Adjustments: Tool-less bungee length adjustment and a quick-adjust belly band ensure a snug and comfortable fit.
• Independent Adjustments: The harness design accommodates various body types with independently adjustable shoulder and waist straps.
• High Lift Capacity: With a 42lb lift capacity, the Nomad Ray can handle heavy steel tanks and multiple stage or deco bottles.
• Integrated Weight Pockets: Three internal weight pockets allow for easy weight management and a streamlined profile.
• Optimal Inflation & Exhaust: A 16" corrugated inflation hose offers multiple mounting options, and two pull dump/OPVs provide efficient venting.

Key Features of the XT4 Sidemount Regulator Package:

• XT4 Second Stage: Offers exceptional ease of breathing and a compact, streamlined design.
• XT1 First Stage: Features a rotating turret design for optimal hose routing and five low-pressure ports for flexible configuration.
• Environmentally Sealed: The XT1 is protected against internal corrosion, contaminants, and freezing.
• Oxygen Compatible: Suitable for use with oxygen-enriched mixtures (with proper precautions).

Note:  DRIS can also customize the regulator package with different hose lengths upon request.

Nomad Ray:

• Full-length Superfabric® "skid plate"
• Tool-less bungee length adjustment system
• Quick-adjust belly band
• Independently adjustable harness
• 3 padded internal weight pockets
• 2 angled D-rings on shoulders, 2 angled D-rings on waist, 2 sliding waist D-rings, 2 chest bungee retainer slides, 2 rear drop D-rings, and 1 dog bone double D-ring on the crotch strap
• User-replaceable 2-inch harness webbing
• Fully adjustable, one size fits all

XT1 First Stage:

• Rotating turret design
• Angled HP ports for optimal hose routing
• Environmentally sealed
• Oxygen compatible (with precautions)

XT4 Second Stage:

• Pneumatically balanced
• Compact and streamlined design
• Durable matte finish
• Available in left or right-hand orientation

Nomad Ray:

• Made in the USA
• Outer Shell: SuperFabric™ material with 600 denier fabric on the backside and 1000 denier nylon on the diver's side.
• Inner Bladder: Heavy-duty 420 denier nylon laminated
• Lift Capacity: 42 lbs (19 kg)
• Optional Bailout Bladder Lift Capacity: 35 lbs (15.9 kg)
• Hose: 16 in (30.4 cm) corrugated with inflate/deflate valve
• Weight: 5.7 lbs (2.59 kg)
• Available Colors: Pink, Red, Blue, Black, and Green

XT1 First Stage:

• Material: Black DLC-coated brass
• Weight (DIN): 1 lb, 15.2 oz (885 g)
• Weight (Yoke): 2 lbs, 6.8 oz (1,100 g)
• Intermediate Pressure: 140 PSI
• 5 LP ports (3-8/24 UN)
• 2 HP ports (7/16-20 UNF/ISO 263)

XT4 Second Stage:

• Weight: 9.4 oz (266 g)
