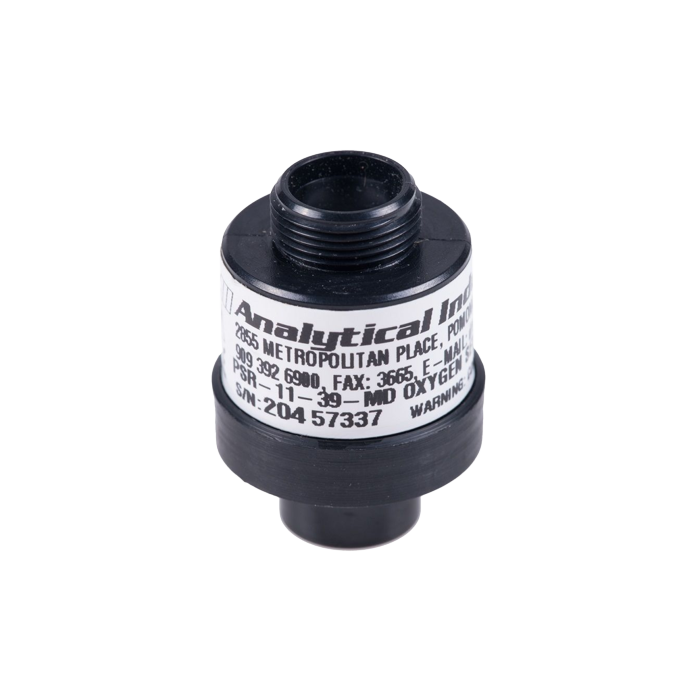

Dive Rite Oxygen Sensor - R22 (PSR-11-39-MD)

OEM Equipment:

- HydroSpace Explorer

- Dive Rite Optima

- Inspiration Rebreather (original configuration)

- KISS Rebreather

- Olympic Submarine Technologies CCR-2000

- Oxy Spy

- City Technology MOX-1 Sensor

- Maxtec MAX-12 Sensor

- Teledyne R-22D Sensor

- Teledyne R-24 Sensor

- Hollis Prism 2

- Hammerhead

- Liberty

- Subgravity

- Apeks DSX Analyzer

- Dive Soft Analyzer

- Mares EANx

Advanced galvanic type oxygen sensor with excellent stability and accuracy under stringent applications. All sensors are subjected to the most extensive stability test, output in air, 30" of water column pressure test and stability at 100% oxygen. The widest range of oxygen sensors offered by Analytical Industries, Inc. are "Made in USA"

Technical Specifications
Measuring Range 0-100%
Accuracy 1 +/-2% of Full Scale
Signal Output 2 8.5-14 mV
Linearity +/-2% of Full Scale
Response T90 6 sec
Temp Coefficient Compensated
Operating Temp 0 to 45°C
Recommended Storage 3 0 to 25°C
Qualified at 1.8 ATA
Shelf Life 4-6 months
Humidity Non-condensing 0-99% RH
Expected Life 42 months
Warranty 5-12 months
Electrical Conn 3 Pin Molex

* Conditions - Specifications validated during design and in pursuit of improvement are subject to change without notice
At constant temperature and pressure.
In air (20.9% oxygen) at 25°C and 1 atm.
Sensor may be stored up to 55°C on an intermittent basis, for example, during transportation.
In original Package at 25°C and 1 atm.
Under normal operating conditions, the sensor is warranted to be free of defects in material and workmanship for the specified period provided the sensor is properly installed and operated. The sole remedy for sensor determined to be defective by Analytical Industries Inc. is limited to replacing the sensor. Analytical Industries In. will not be liable for buyer’s negligence, misapplication, abuse or accident.
